Feldfu radio reproduction Frontliner set (5gen 2026)

We value every customer that decide to put his trust into our products preordering, therefore - we prepared this nice bundle for preorders - it makes the most complete radio system with accessories on market for a favorable price. Bundle includes these separate items that would separately cost much more:

• Feldfu radio reproduction (gen 5)
• Kehlkopfmikrofon (Fu)b reproduction
• Rückenstütze - back support radio belt
• Feldfu instruction booklets set
• Radio communications training guide
• another modern walkie-talkie

The Frontliner Set is designed for all scouts and bold teams who demand a higher level of durability and resilience from their equipment. Gen5 offers improved endurance when moving through dense forests, during impacts in the heat of action, and enhanced temperature resistance.

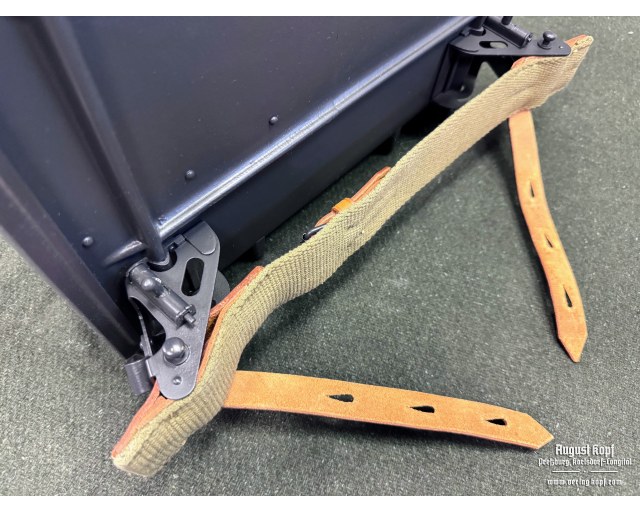

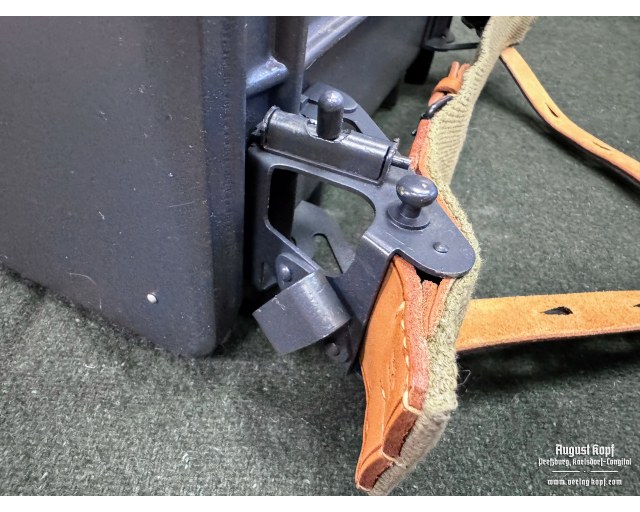

This set also includes a Rückenstütze belt to support the lower back, providing comfort during prolonged wear. In original collections, this component is rare and often missing — we are proud to offer it in the highest quality, produced in cooperation with local workshops.

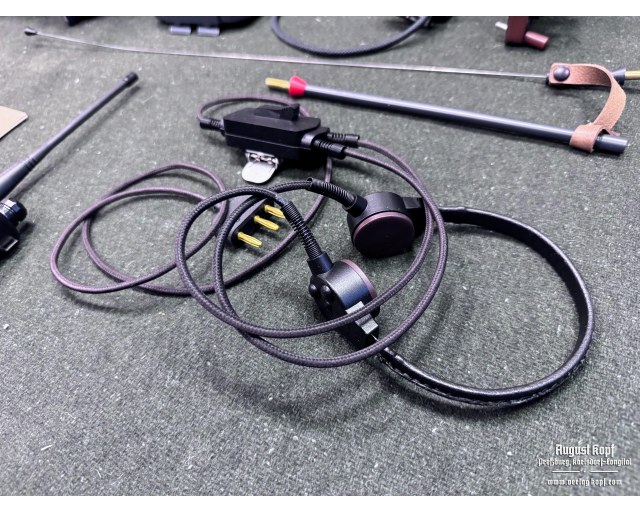

For communication while on the move, a throat microphone is the preferred option, allowing hands to remain free for handling weapons or navigating difficult terrain.

To complete the set’s versatility across different scenarios, we also include a modern radio, which can be used by another command element or by someone operating discreetly out of public view.

Please note that headphones are not part of the set. As mentioned in our blog post, we believe that they can currently be found cheaper in local markets. If you struggle to get some original working headphones, please write us about our current offer.

Having one of the Feldfu radios reproduced correctly was a dream during last decades. Make sure to read our blog articles. Read more.

---------------------------

Production 2026 with estimated delivery by end of the year 2026.


---------------------------

The real benefit of this project is as usually:

• the ability to demonstrate field or position usage of German WW2 communication technics which is often not possible with original pieces,
• not damaging original collection items that are very hard to acquire,
• 100% display authenticity (even skilled collectors will have troubles to distinguish repro until disassembled),
• maintaining authentic connection during events,
• much easier repairs, easier accessibility, customizable version and many more...

Radio itself is connected with front panel, which is the most interesting and functional part. It contains frequency setting, battery indicator, volume and frequency tuning remote control, three connectors (1x mic, 2x phones) and on/off switch.

Overall, our Feldfu radio consists of 479 parts/rivets/screws/pads needed for completization. It is also a result of 10 months of development.

Common technical details of our Feldfu reproductions:

Size: 34x36x12cm (without antenna)

Weight: 4.2 kg

Powered by: commercially available walkie-talkies 400-520MHz, 8W

Frequency: PMR channel 1 and channel 10 of 446 civic range set for all our repro radios

Battery: 3800 mAh (will lasts months of sporadic use without charging)

Successful communication range, tested:

• on 400m with obstacles: 3x block of flats
• on 100m into WW2 bunker with 1,3m metal-concrete wall
• direct sight on 1000m
• direct sight on 2000m
• direct sight on 3000m

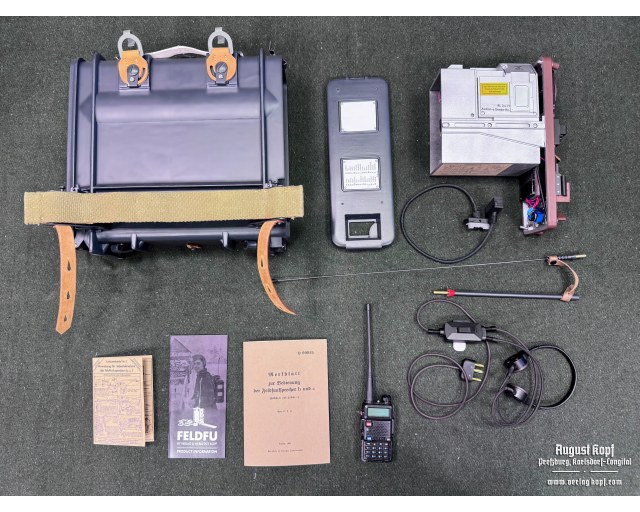

Feldfu package contains:

• the Feldfu case in dark grey finish, antenna mount, hinges, hooks and rivets based on original
• two main lids comes with code alphabet and internal plastic label-sheets with rubber gaskets
• front-panel with all parts movable, partially working, detachable volume control

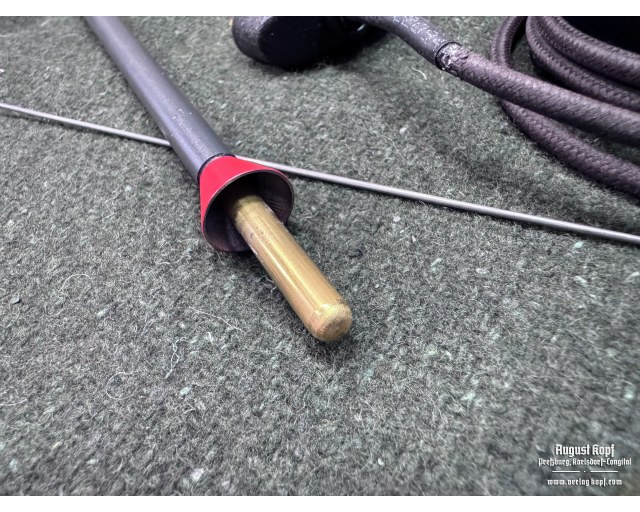

• early war antenna in 70cm design, dummy version (suitable for version b/b1/b2/c)
• extension cable Fernbedienungskabel b, for volume control (mount to belt/chest)
• authentic interior radio skelet part for hiding modern electronics
• Sammler 2,4 NC 28 dummy battery box
• modern walkie-talkie with rechargeable battery
• electronics ready for peripherals connection
• authentic paper documentation, handbooks

Version differences
Thanks to the very small differences among the versions of the radios, we are able to offer following designs: Feldfu.b, Feldfu.c, (Feldfu.f, discontinued for lack of interest, we can offer it without late war antenna). For Wien and Frankfurt version please see separate product listed.



Each of the model has interesting history and appeared in different year based on different assignment. Most visible differences are following: thin/thick rim (early models have been often reported as prone to cracking, so later in war these were replaced by more resilient skelet with rubber buffers), frequency meter (various models operated on different frequencies and clock was redesigned), antenna base (inclined for models f/h), color, markings etc.

If you portray an early war unit and battles 1941 - 1943 you should go for a thin rim case.

Table in blog article contains basic differences and only indicative assignment to units. Infantry units were assigned with 4 Feldfu.b on a Kompanie level. Feldfu.f were designed for communication with FU5 set in tanks they were supporting. Feldfu.h were designed for communication with FU16 set in Sturmgeschutz.



Before finishing order, please write us by email or FB message about availability of version b/c/f. With new PayPal terms we accept only Friend and Family option, please contact us by advance and do not pay in eshop process. Thanks for understanding.
